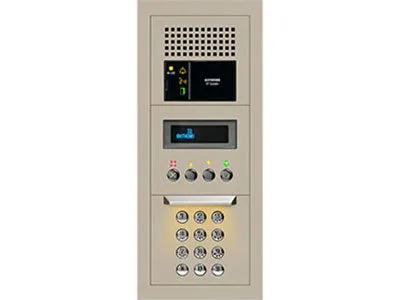

FEATURES

• Contains GT-DB audio module and GT-NSB digital display and directory
• GT-10K keypad for direct dialing and access control
• Includes GF-3F frame and the GF-3B flush back box
• VFD screen displays a customizable greeting message, tenant directory, and system status
• Surface mount the GTA-DESB with the steel GT-103HB

SPECS
Power Source:
24V DC, use specified number of
PS-2420UL per system configuration

Communication: Hands-free from entrance panel to
tenant station

Capacity:
Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit

Wire:
2-conductor, PE insulation
Aiphone #872002, 2-conductor PE
insulated, non-shielded, 11.05 pf/ft (Audio)

Wiring Distance:
GT-BC to farthest entrance: 980'
GT-BC to farthest tenant (audio): 980'
