FEATURES

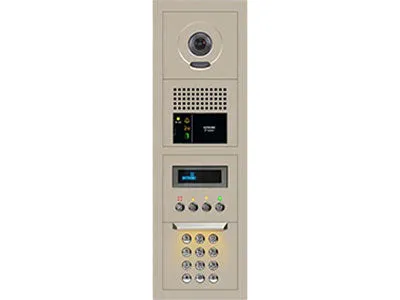

• Contains GT-DB audio module, GT-VB video module, and GT-NSB digital display and directory
• GT-10K keypad for direct dialing and access control
• Includes all appropriate frames and the GT-4B flush back box
• VFD screen displays a customizable greeting message, tenant directory, and system status
• Surface mount with the stainless steel GT-104HB

SPECS
Power Source: 24V DC, use specified number of PS-2420UL per system configuration
Communication: Hands-free from entrance panel to tenant station

Capacity:
Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit

Wire:
Two sets of 2-conductor, PE insulation
(two common buses for audio & video)
Aiphone #872002, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Audio)
Aiphone #871802, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft (Video)

Wiring Distance:
GT-BC to farthest entrance: 980'
GT-BC to farthest tenant (audio): 980'
GT-VBC to farthest entrance: 980'
GT-VBC to farthest tenant (video): 500'
