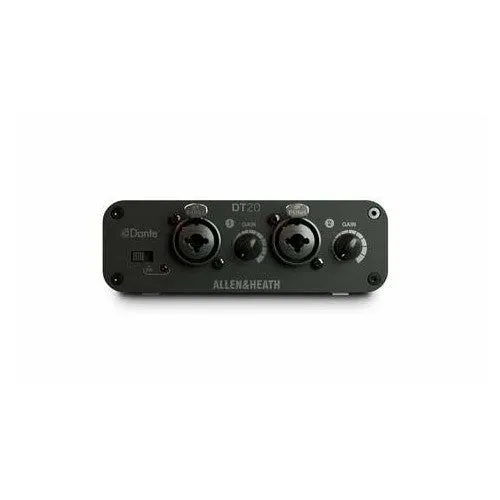

The compact 48kHz/96kHz DT-20 Dante interface enables the convenient placement of two mic/line inputs wherever they are needed to get analog audio into a Dante network. It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems, making it perfect for fixed installations or live applications.

With its compact size, the DT20 is easily mounted under a table or podium for local mic connection or can be rack-mounted for use on stage, front of house, or wherever it is needed.

The DT-20-M version includes surface mounting ears and does not include a power supply.

Allen & Heath DT-20-M Includes:

• DT-20-M
• Surface mounting ears

Allen & Heath DT-20-M Features:

• Dante input interface, 48kHz/96kHz
• Two combination mic/line inputs
• 48V phantom power with LED indicator
• Local gain control
• DC 12V or PoE power

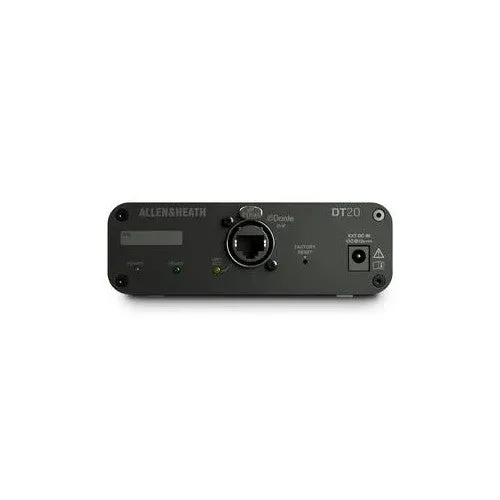

• EtherCon connector
• Housed in a rugged aluminum enclosure
• Included ears for surface mounting
• Optional DT-RK19 rack mounting kit (sold separately)

Allen & Heath DT-20-M Specifications:

• Mic/Line Inputs:
  • Mic Inputs: Balanced XLR, 48V phantom power
  • Analog Gain: 0 to 55dB
  • Line Inputs: Balanced TRS, -20dB pad
  • Maximum Input Level: 30dBu (TRS in)
  • Input Impedance: >4k Ω (XLR), > 10k Ω (TRS)
• Dante: 48kHz/96kHz
• Power: 12VDC, 1.25A (power supply not included)
• Power Consumption: 10W max.
• PoE Requirements: 802.3af 15W
• Operating Temperature Range: 0 to 40 degrees C (32 to 104 degrees F)
• Dimensions: 5.1” wide x 5.4” deep x 1.7” high (130 x 136 x 43 mm)
• Weight: 1 lb. (0.5 kg)
