Product Details

TH 3.0 II voceMid Range | 110 W Peak Power | 70 mm | 4 ohm


The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum.The R & amp;D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance.ULTRA HIGH CONTROLThe extremely powerful custom N38 H-grade Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.EXTREME LINEARITYThrough finite element simulation (FEM) the Audison R & amp;D team has optimized the break-up point between cone/surround, obtaining an ultra-linear frequency response in the mid-range.The generous 30 mm CCAR (Copper Clad Aluminum Ribbon) voice coil wound with flat wire gives the TH 3.0 II Voce an extraordinary excursion and minimizes at the same time the cone non-linearity.TPX® CONETH 3 II Voce membrane is made of TPX®, a transparent material that ensures frequency response linearity leaving the speaker interior in full view.

TECHNICAL SPECS

Size70 mm
Power Handling - Peak110 W
Power Handling - Continuous55 W
Impedance4 Ohm
Frequency Response110 ÷ 5700 Hz
Magnet MaterialSPECIAL NEODYMIUM N38H
Voice Coil Ø30.5 mm
Voice Coil MaterialCCAP - COPPER CLAD ALLUMINIUM RIBBON
Woofer Qes0,52
Xmax3.3 mm

ELECTRIC-ACOUSTIC SPECS

D66.75 mm
Re3.4 Ohm
Fs100 Hz
Vas1.01 l
Mms4.3 g
Cms0.59 mm/N
BL4.2 T•m
Qms5.5
Qts0.48
Le Standard0.18 mH
Spl85.6 dB

GENERAL

Weight0.25 kg

DIMENSIONS

Dimension A84 mm
Dimension B73.5 mm
Dimension C45 mm
Dimension D37 mm
Dimension E89 mm
Dimension F18

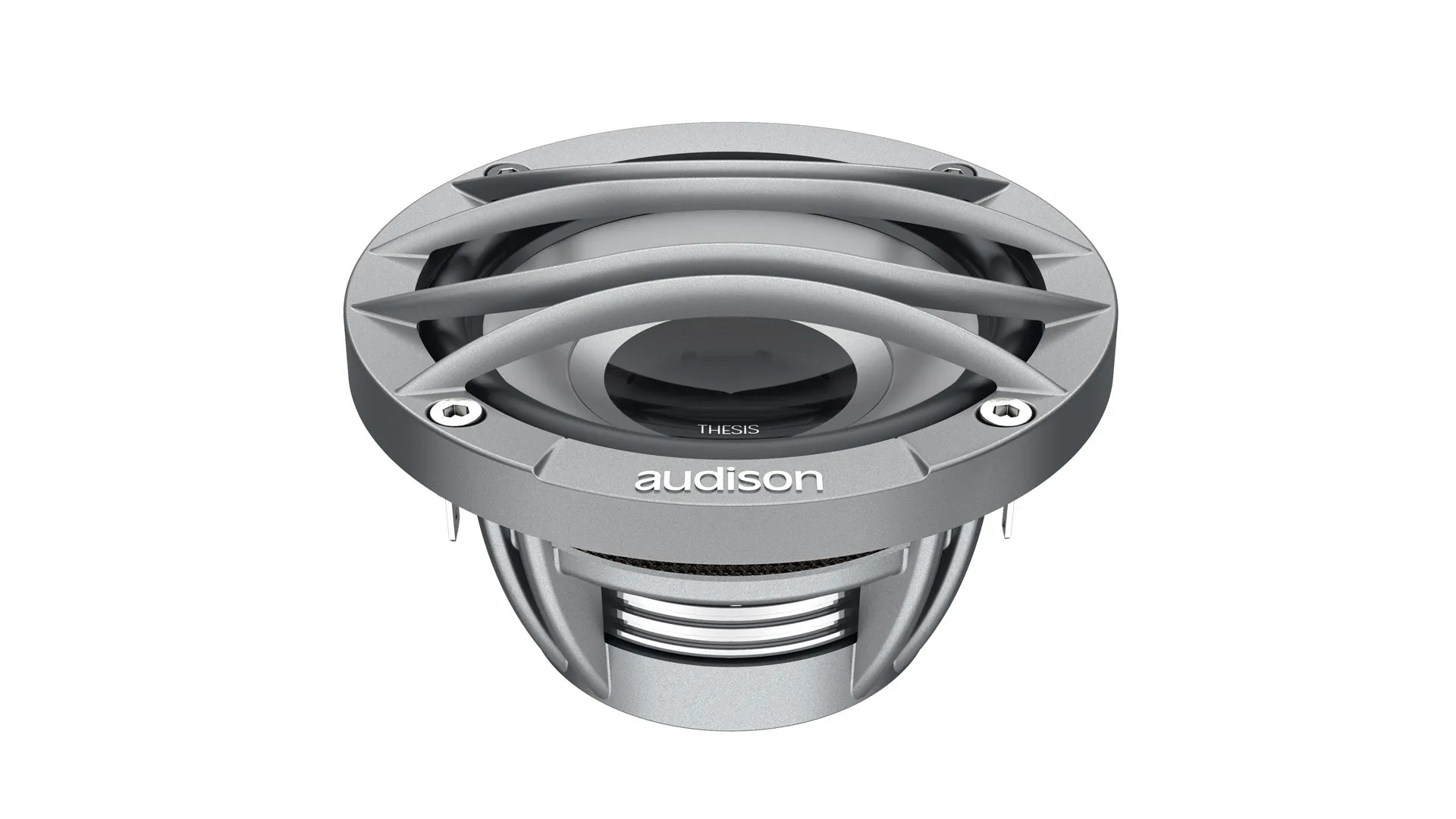

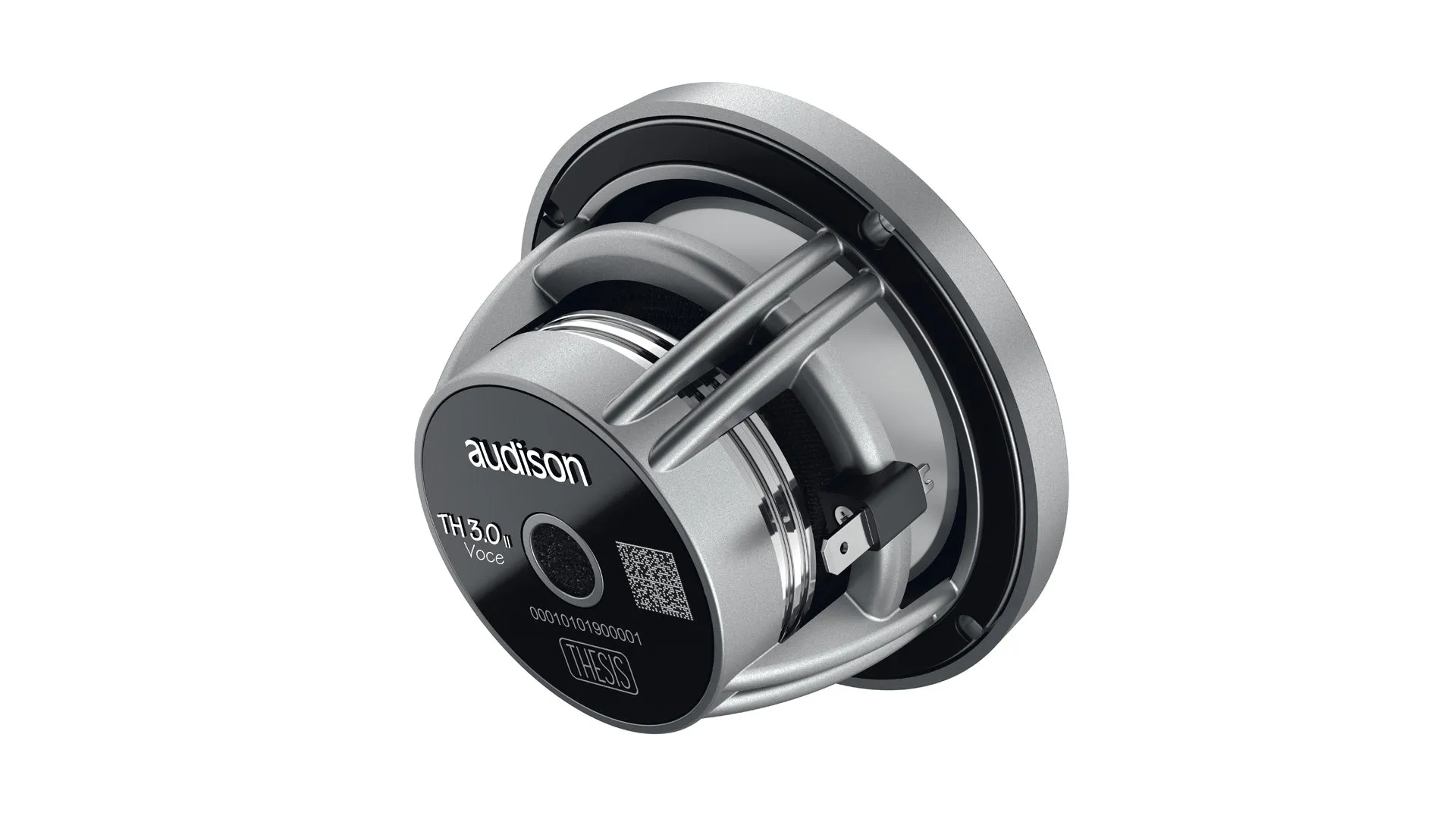

Audison TH 3.0 II voce
  • DefaultTitle

$ 83.51

$ 64.24
