Advanced Technology for Stable Signal Transmission
The BY-XM6 S1 adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S1 avoid the disturbed hop frequency parts automatically to realise stable signal transmission in the range of up to 100m (328ft), without obstacle.
Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S1 captures and delivers high-quality, clear and low-noise audio.
Ultra-versatile & Easy-to-use Wireless Microphone Kit

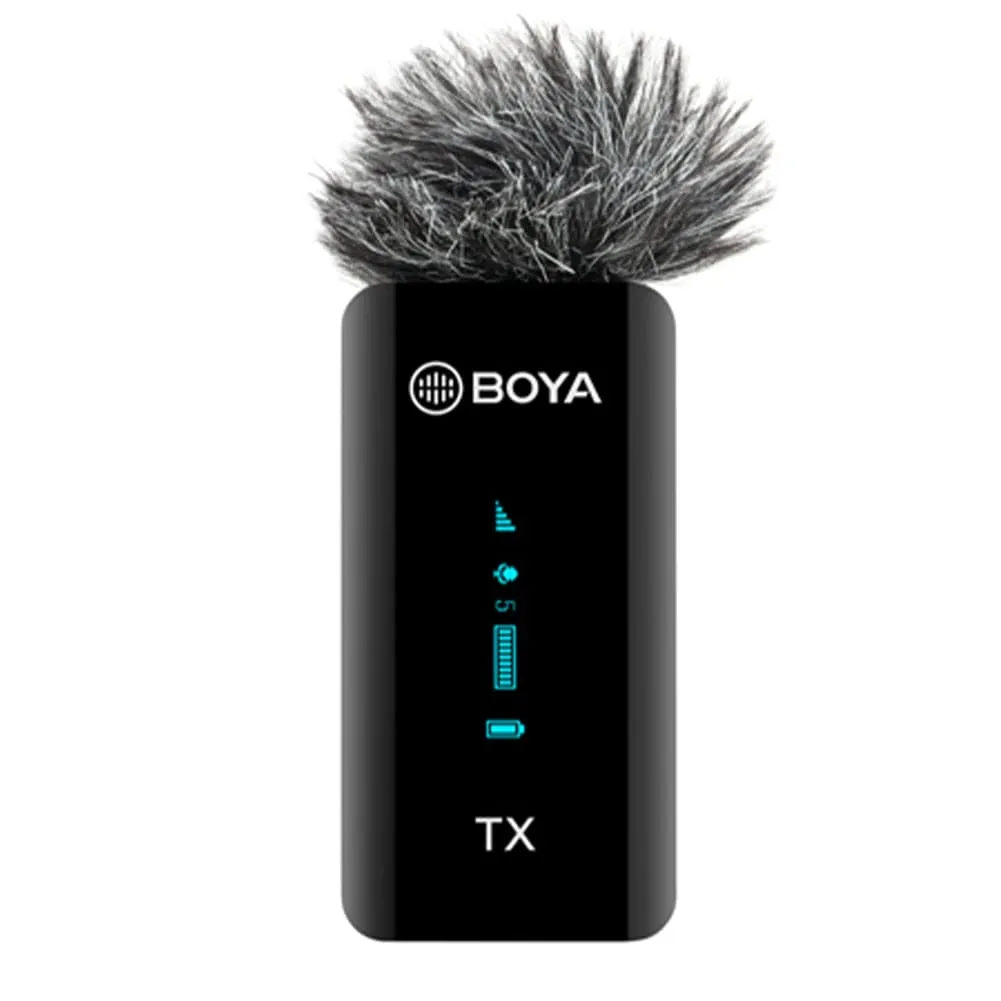

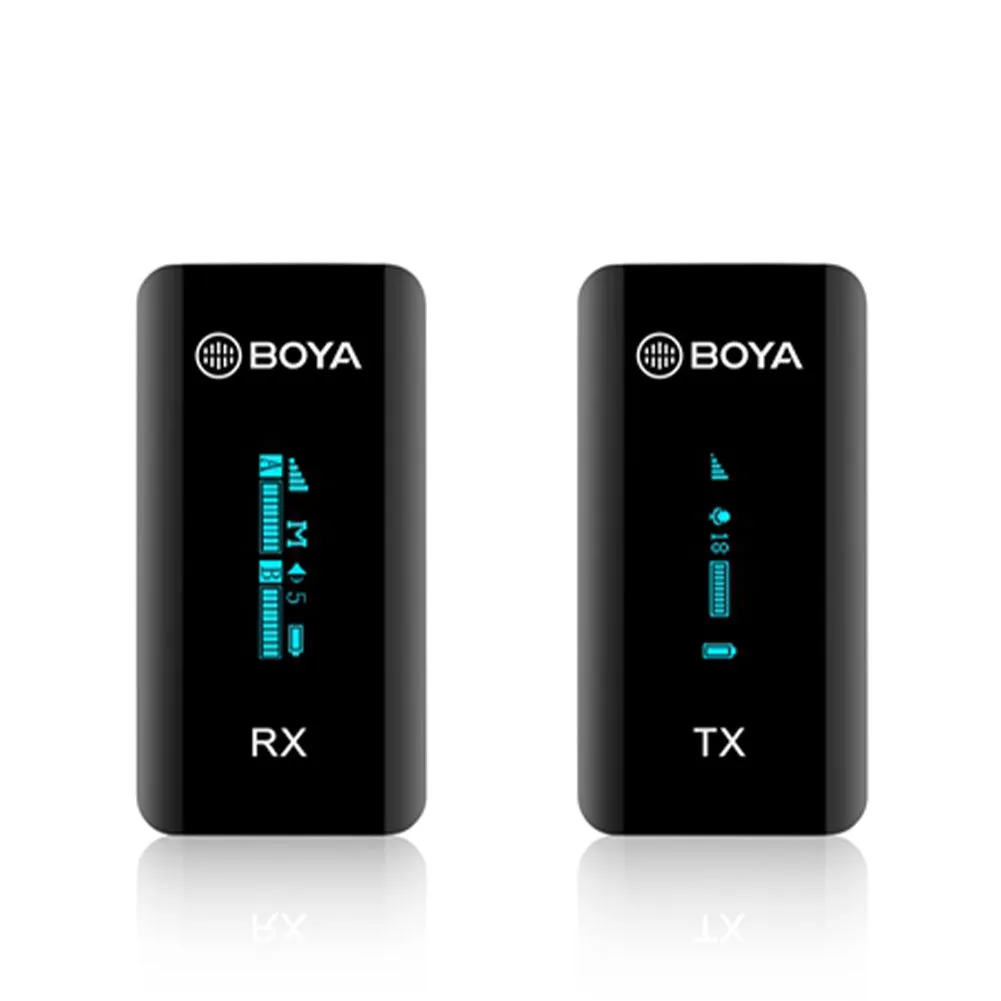

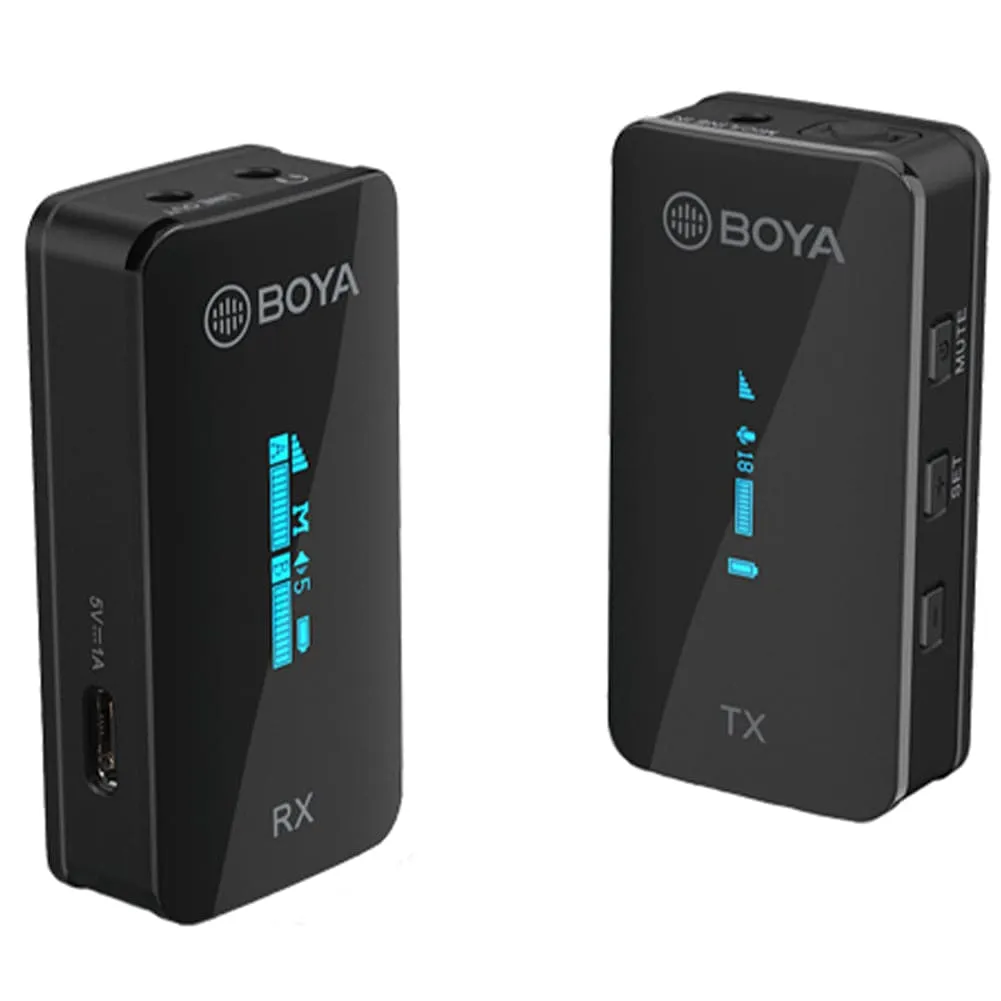

With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work well with your DSLR or mirrorless camera, smartphone and computer etc.
Features
- Ideal for one-person vlog, YouTube video, live streaming, interview, recording, etc.

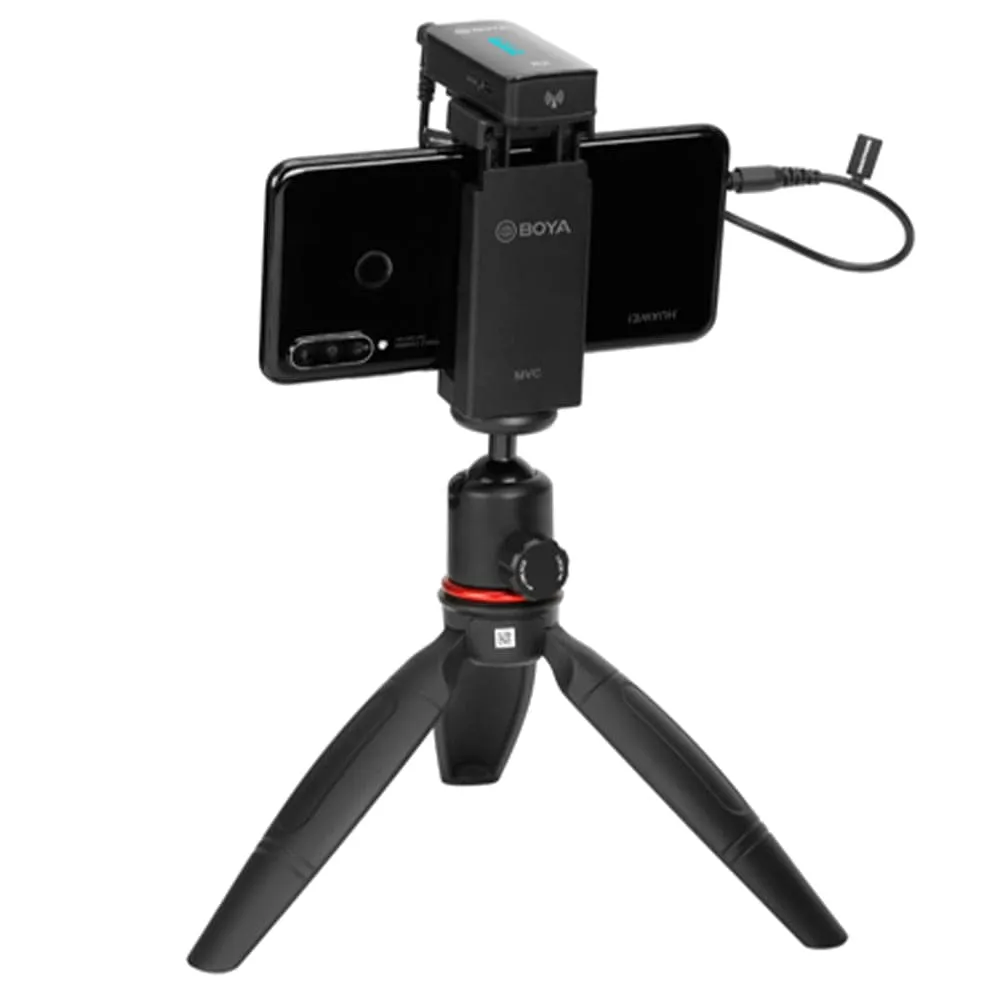

- Compatible with DSLR, mirrorless camera, smartphone and computer.
- 2.4GHz wireless signal transmission technology.
- Hi-Fi and low-noise audio processing and delivering system.
- Built with easy-to-use, vivid, and informative OLED display.
- Built-in omnidirectional microphone and a lavalier microphone on transmitter.

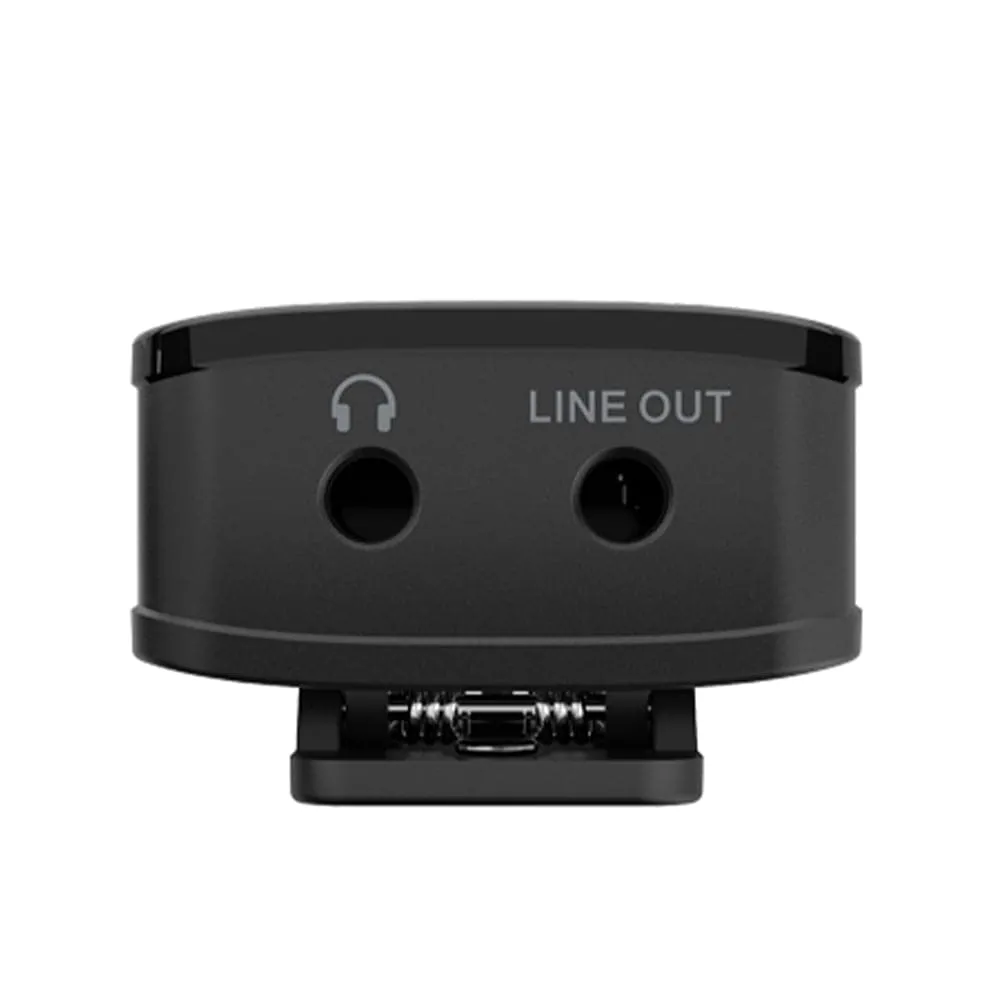

- Headphone output jack on receiver for real-time monitoring.
- Stereo and mono outputs are available and switchable on receiver.
- Built-in Li-ion batteries for 7h use on transmitter and 6.5h use on receiver.
- Up to 100m (328ft) operation range without obstacles.
Specifications
Transmitter
|
Transmission Type |
2.4GHz Digital Frequency |
|
Modulation |
GFSK |
|
Operating Range (without obstacle) |
Up to 328ft (100m) |
|
RF Output Power |
＜10mW |
|
Polar Pattern |
Omnidirectional |
|
Frequency Response |
50Hz-18KHz |
|
Maximum SPL |
Built-in Microphone: 120dB SPL |
|
Lavalier Microphone: 110dB SPL |
|
|
Sensitivity |
Built-in Microphone: -39dB |
|
Lavalier Microphone: -39dB |
|
|
SNR |
> 84dB |
|
Power Requirements |
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
|
Built-in Battery Life |
Approx. 7 hours |
|
Antenna |
PIFA Antenna |
|
Audio Inputs |

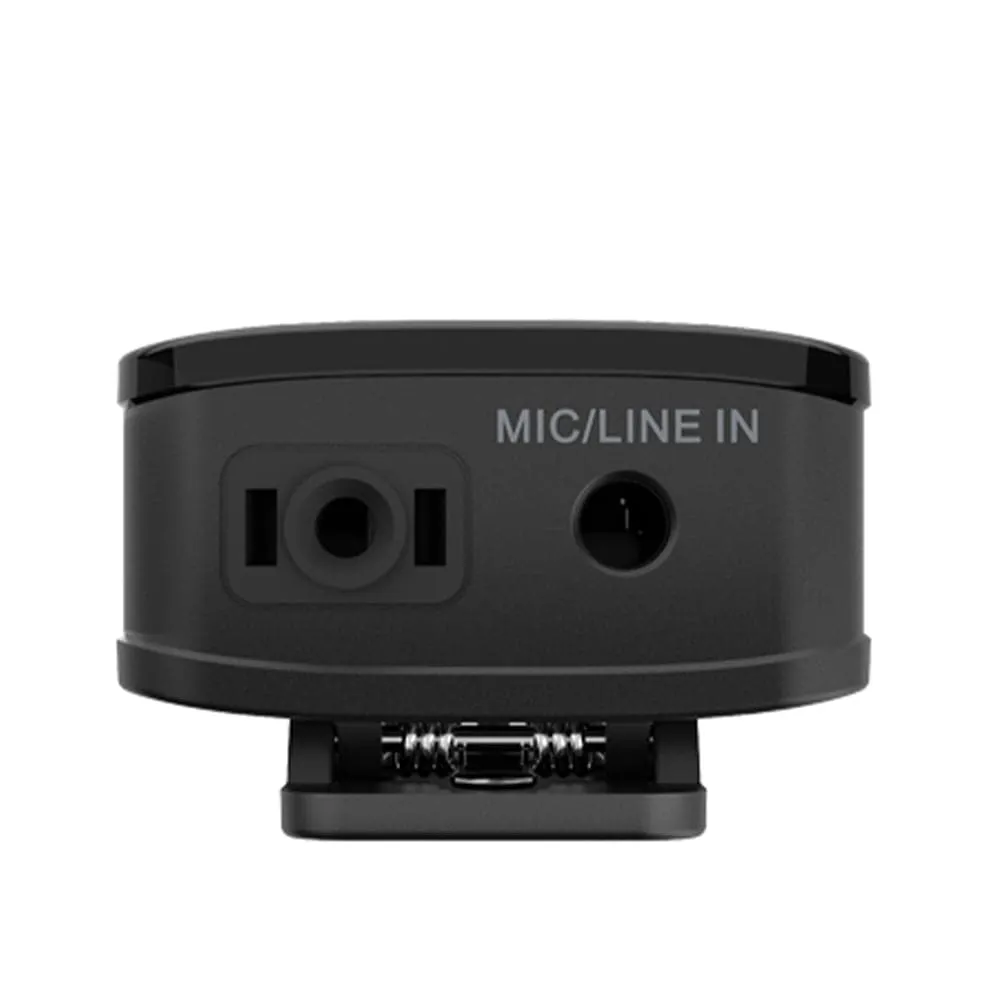

3.5mm TRS MIC/LINE IN Jack or Built-in Microphone |
|
Weight |
Approx. 32g(1.13oz) |
|
Dimensions |
62.1×31.6×16.5mm |
|
Operating Temperature |
–10°C to 50°C |
|
Storage Temperature |
–20°C to 55°C |
Receiver
|
Transmission Type |
2.4GHz Digital Frequency |
|
Modulation |
GFSK |
|
Operating Range (without obstacle) |
Up to 328ft (100m) |
|
Audio Output Connector |
3.5mm Headphone Jack |
|
3.5mm Headphone Jack |
|
|
Audio Output Level |
–60 dBV to -20dBV |
|
Power Requirements |
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
|
Built-in Battery Life |
Approx. 6.5 hours |
|
Antenna |
PIFA Antenna |
|
Weight |
Approx. 32g(1.13oz) |
|
Dimensions |
62.1×31.6×16.5mm |
|
Operating Temperature |
–10°C to 50°C |
|
Storage Temperature |
–20°C to 55°C |

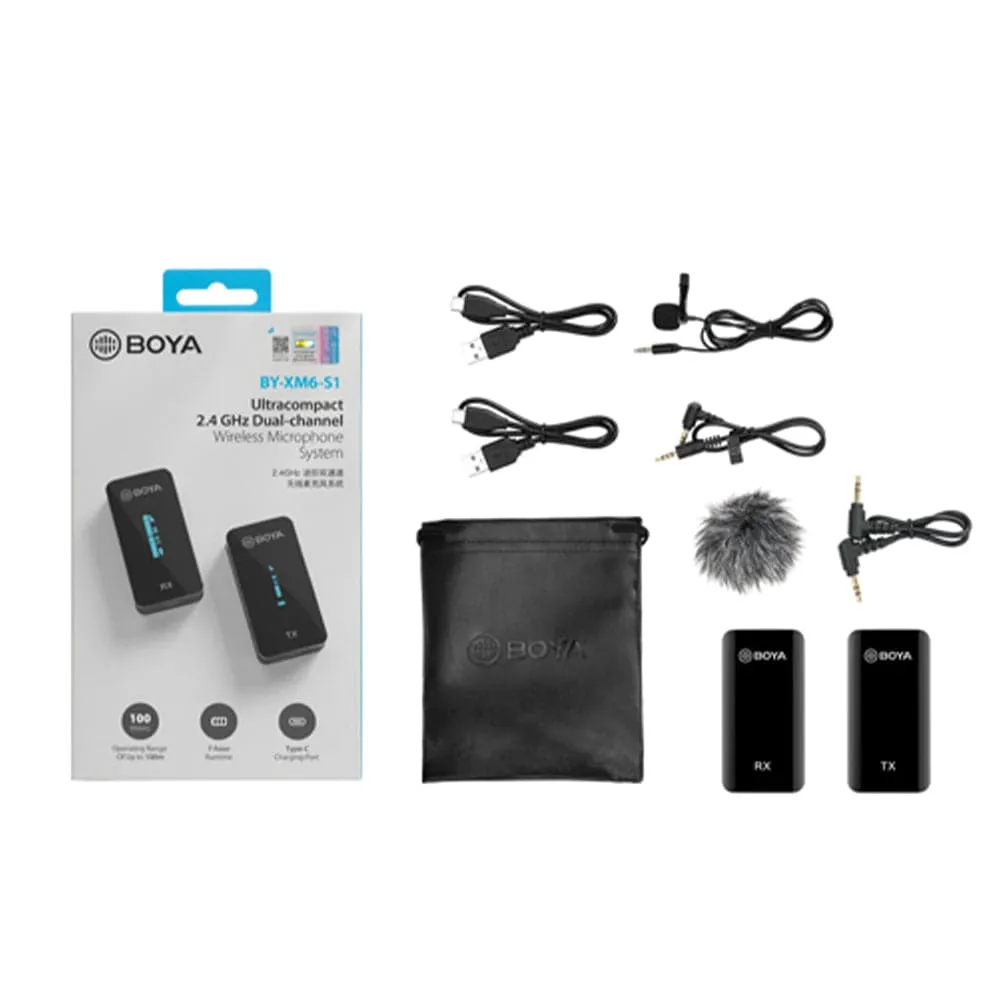

What's Included
1 x Boya BY-XM6-S1 Ultra-compact 2.4GHz Wireless Microphone Single Kit
