Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

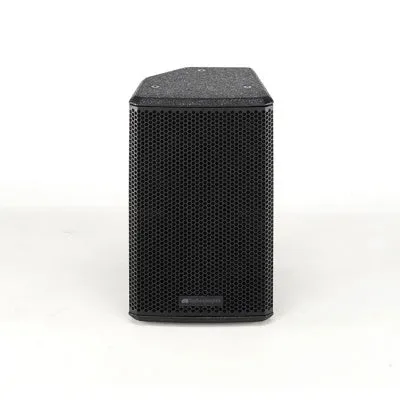

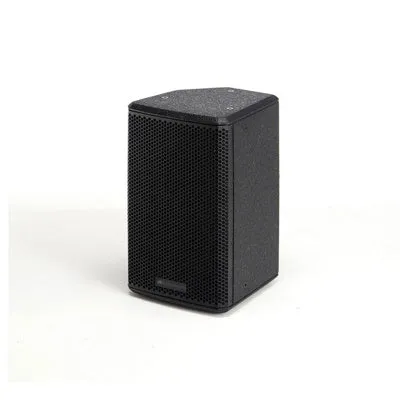

Full range LVX P8 provides a 90x70 dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V).

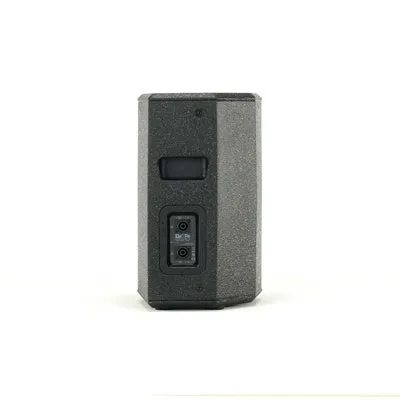

The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
All enclosures and accessories of LVX P series are available in black or white version.
Technical Data
- Speaker Type: 2-Way Passive Speaker
Acoustical Data
- Peak Power: 400 W
- Impedance: 8 Ohms
- Frequency Response [- 10 dB]: 74 - 18.000 Hz
- Max SPL: 122 dB
- HF: 1 "œ, 1" v.c.
- Directivity: 90x70°
- Horn: Rotatable
- LF: 8 "œ, 1.5" v.c.
Input
- Signal Input: 1x Speakon (Pin 1 = ) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1 = ) (Pin 1-=-)
Mechanics
- Housing: Plywood
- Pole Mount: 36 mm

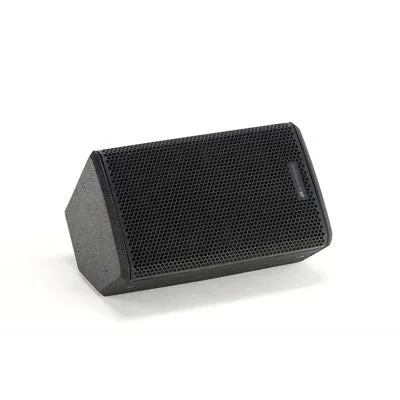

- Angle Up: Monitor use 40°
- Rigging Points: 12 x M8
- Handles: 1 on back side
- Width: 255 mm
- Height: 426 mm
- Depth: 258 mm
- Weight: 8.1 kg
