ELECTRO-VOICE F.01U.170.822

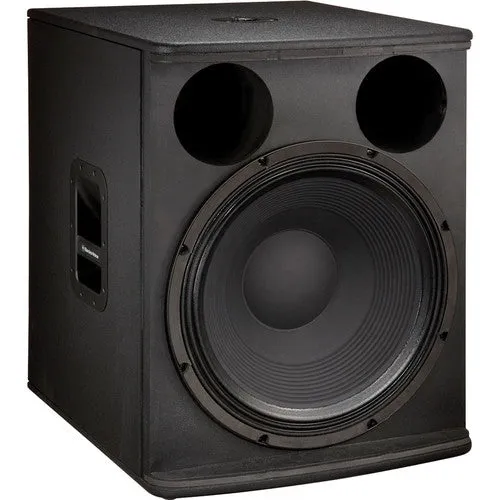

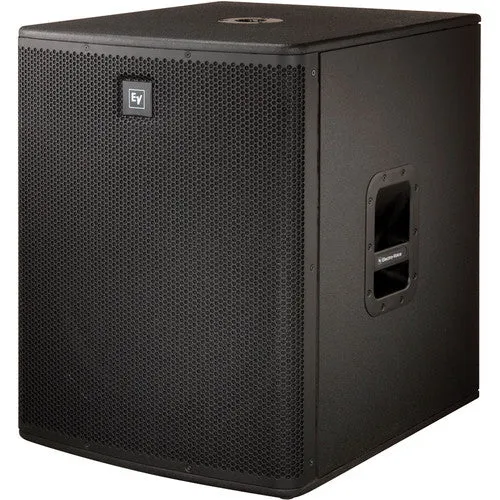

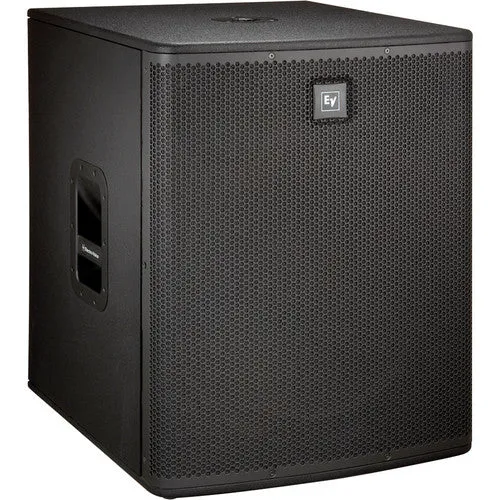

ELX 118P – 18" Powered Subwoofer
Optimized for performance with the ELX112P and ELX115P, the ELX118P adds a deep, low-frequency, amplified punch that you can hear and feel.
Clear, powerful and musical Electro-Voice loudspeakers command the stage at high-profile venues and major events worldwide. Born stage-ready, the Live X series includes powered and passive models that all feature EV-engineered components in solid wood cabinets. Wherever performance matters, Live X is serious gear for serious sound.
The Electro-Voice Live X powered loudspeakers are fully integrated audio systems with carefully matched electronics and transducers. These products make it easy to setup a high quality sound system quickly with a minimum amount of cables and external electronics.
System Features

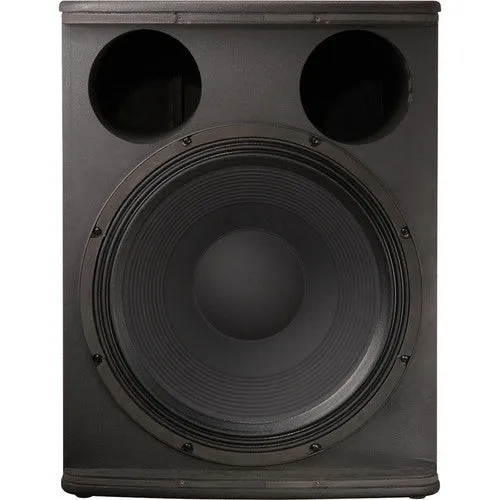

- EVS-18K 457mm (18") Woofer for Powerful, Engaging Bass Response
- 32 Hz – 130 Hz Frequency Range; 134 dB Max SPL
- 700 W Class D Lightweight Amplifier — Runs Cool Without Fans
- Supports Pole Mount for Full-Range Systems
- XLR and TRS Combo Input
- Switchable EQ Modes for Different Applications
- XLR Parallel Output
- Front-Mounted Power LED, Selectable On or Off
- Indicator Lights for Power on and Limit
- 15mm Plywood Enclosure, Internally Braced, with Textured Paint
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Color | Black |
| Coverage (Nominal -6 dB) | Omnidirectional |
| Nominal Impedance | 8 Ω |
| Power Rating | 700 W |
| Speaker Type | Subwoofer |
| Woofer Size | 457.2 mm (18") |
| Frequency Response (-3 dB) | 36 - 210 Hz |
| Frequency Response (-10 dB) | 32 - 130 Hz |
| Internal Crossover | Yes |
| Max. SPL/1m (calc) | 125 dB |
| LF Transducer | (1) EVS-18K, 457mm (18") Woofer |
| HF Transducer | N/A |
| Crossover Frequency | 100 Hz |

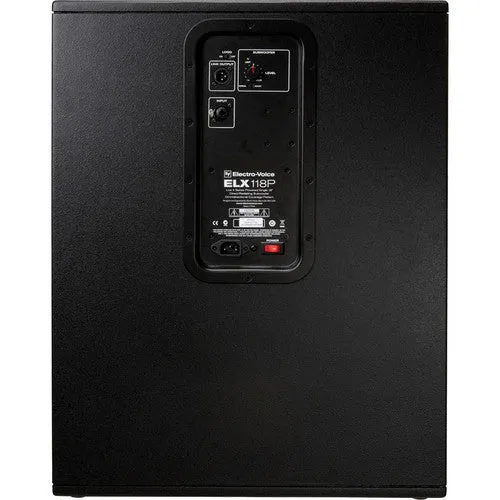

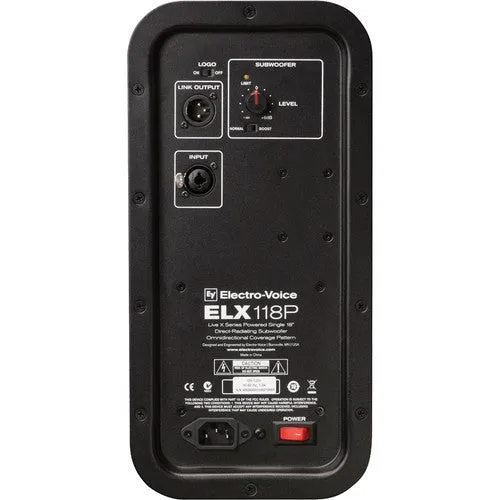

| Connector Type | (1) XLR/TRS Combo Jack, (1) XLR Link Output |

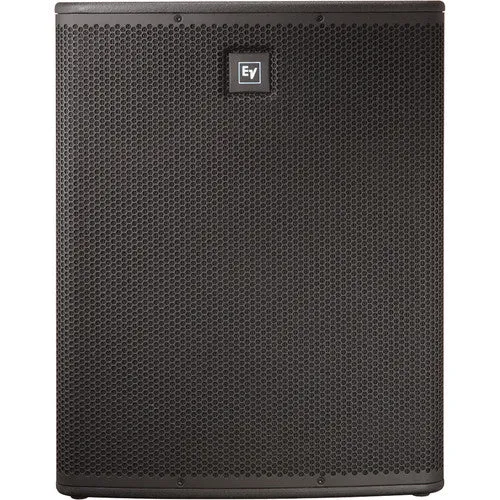

| Grill | 18GA Steel with Black Powdercoat |
| Height | 661 mm (26.02") |
| Width | 507 mm (19.96") |
| Depth | 574 mm (22.6") |
| Weight Net | 31.3 kg (69 lbs) |
