Product Details
＋
ELECTRO-VOICE F.01U.265.605

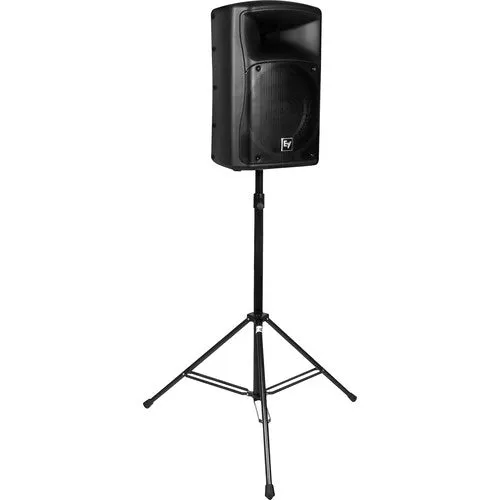

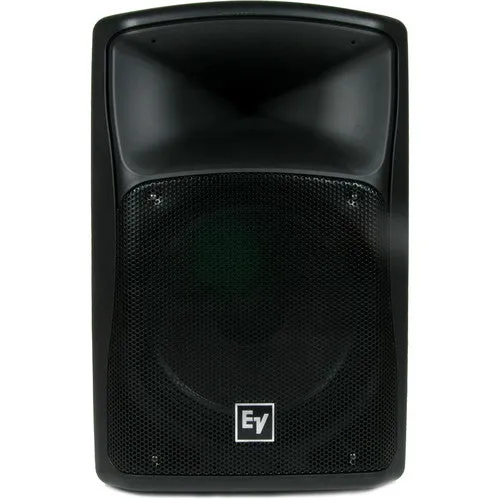

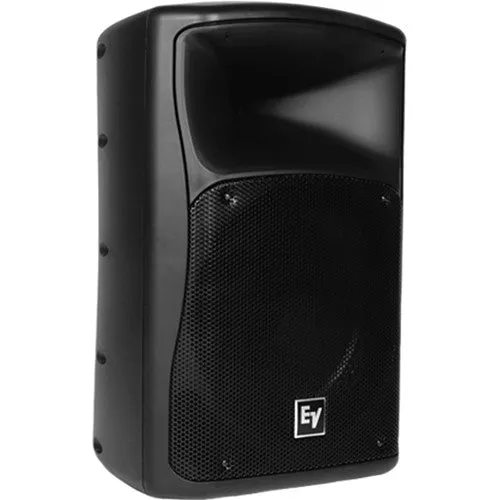

Zx4 is designed mainly for portable applications such as performing artist, musicians, and small bands. And with an integral pole-mount, the Zx4 is ready for any main mix application.
Features
- Designed for House of Worship, Pro Music, and other applications.
- 15-2-Way with EVS15SF woofer
- DH3 1,25” titanium HF driver
- 400 Watt cont. 1600W Peak
- High sensitivity (100dB)

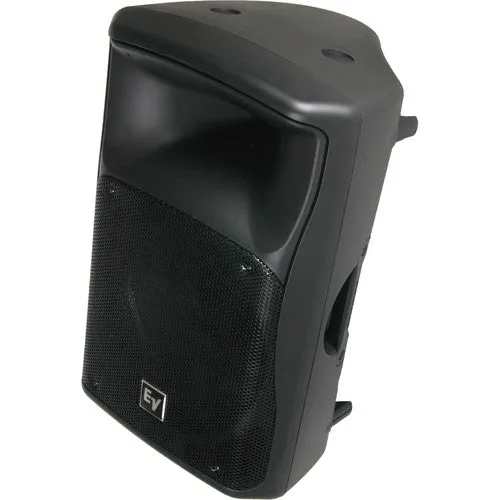

- Adjustable monitor angles 45° and 55°
- Large Format 90° x 50° EV horn
| Chassis Size | 381 mm (15") |
| Color | Black |
| Input Connections | Parallel Neutrik® NL4 |
| Speaker Type | Fullrange |
| Speaker Type | Mid-High |
| Speaker Type | Two-Way |
| Speaker Type | Wedges |
| Frequency Response (-3 dB) | 60 - 20000 Hz |
| Frequency Response (-10 dB) | 42 - 20000 Hz |
| Internal Crossover | Yes |
| Sensitivity 1 W/1 m | 100 dB |
| Max. SPL/1m (calc) | 132 dB |
| Coverage (Nominal -6 dB) H° |
90 ° |
| Coverage (Nominal -6 dB) V° |
50 ° |
| System Power Handling (Continuous/Program/Peak) | 400 Watts |
| LF Transducer | EVS15SF |
| HF Transducer | DH3 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Flying | Yes |
| Outdoor | No |
| Height | 686 mm (27.01") |
| Width | 445 mm (17.52") |
| Depth | 406 mm (15.98") |
| Weight Net | 20.2 kg (44.53 lbs) |
