Product Details
＋
ELECTRO-VOICE F.01U.302.273

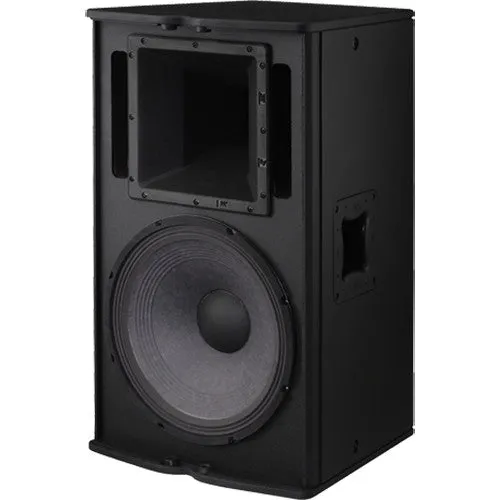

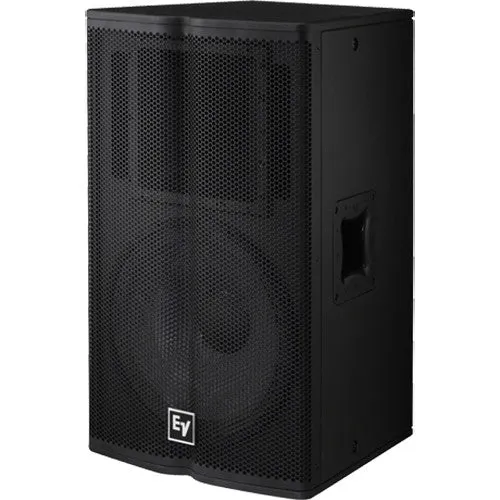

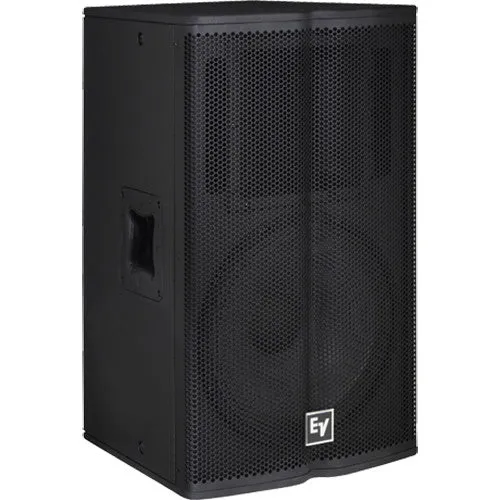

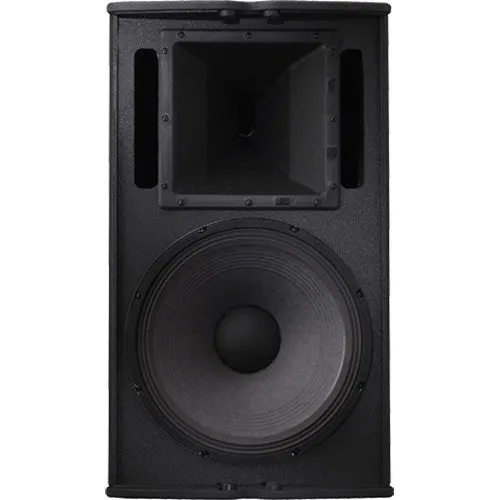

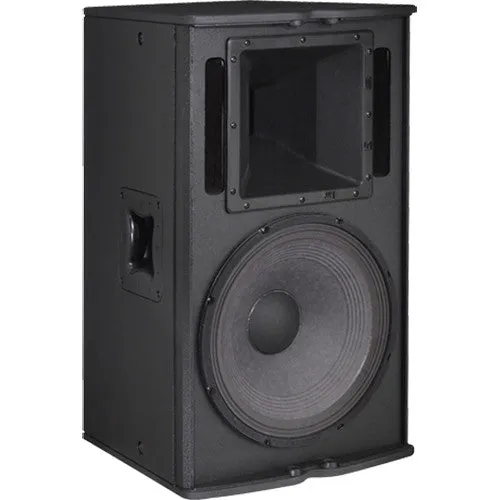

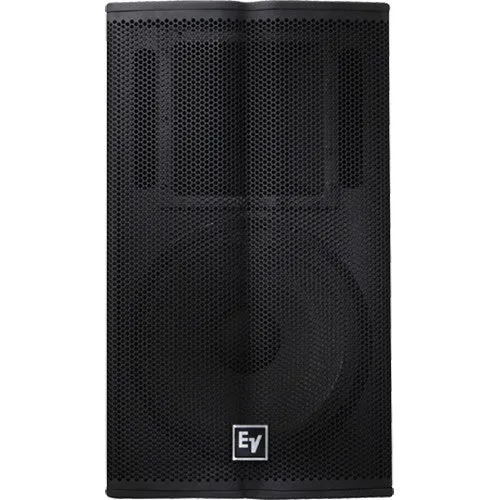

TX1152 fits the bill when applications that require the low-frequency extension of a 15“ woofer, with the outstanding pattern control of a larger, rotatable, 60 x 40 horn.
Features
- Designed for Club Sound, House of Worship, Pro Music, and other applications.
- DH3 1.25” (32 mm) diaphragm, 1” (25 mm)-exit pure titanium compression driver
- SMX2151 15” (381 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover with HF protection
- 60° x 40° rotatable coverage pattern
- 100 dB sensitivity, 133 dB maximum SPL
- 500 W continuous, 2000 W peak power handling
- Pole mount for tripod use
- Six 3/8” threaded points for suspension
| Color | Black |
| Input Connections | Parallel Neutrik® NL4 |
| Speaker Type | Fullrange |
| Frequency Response (-3 dB) | 55 - 20000 Hz |
| Frequency Response (-10 dB) | 40 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 40 Hz |
| Sensitivity 1 W/1 m | 100 dB |
| Max. SPL/1m (calc) | 133 dB |
| Coverage (Nominal -6 dB) H° |
60 ° |
| Coverage (Nominal -6 dB) V° |
40 ° |
| Rotatable Horn | Yes |
| System Power Handling (Continuous/Program/Peak) | 500 Watts |
| LF Transducer | SMX2151 |
| HF Transducer | DH3 |
| Crossover Frequency | 1650 Hz |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 5.6 Ω |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Flying | Yes |
| Suspension | (6) 3/8-inch threaded inserts |
| Height | 776 mm (30.55") |
| Width | 446 mm (17.56") |
| Depth | 446 mm (17.56") |
| Weight Net | 27.8 kg (61.29 lbs) |
