Product Details
＋

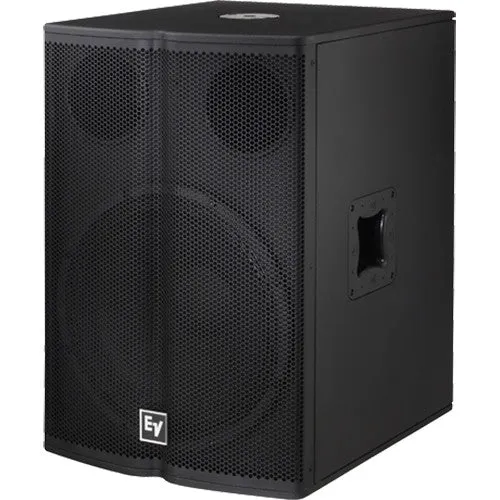

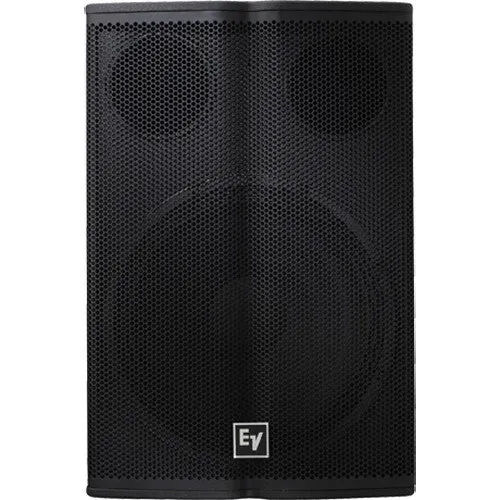

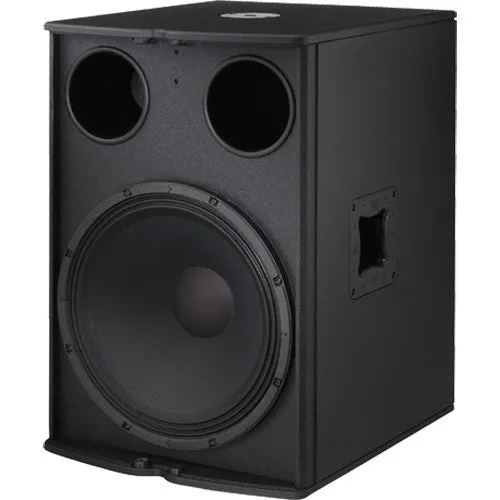

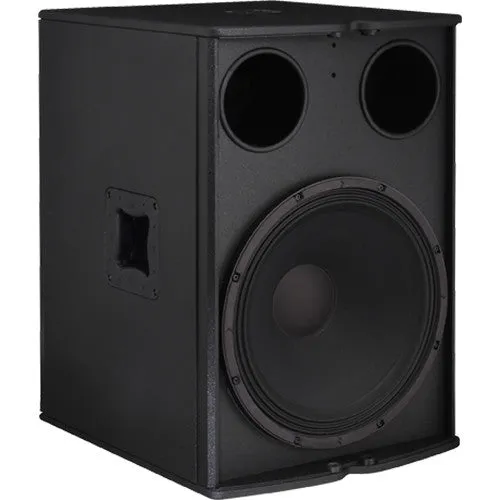

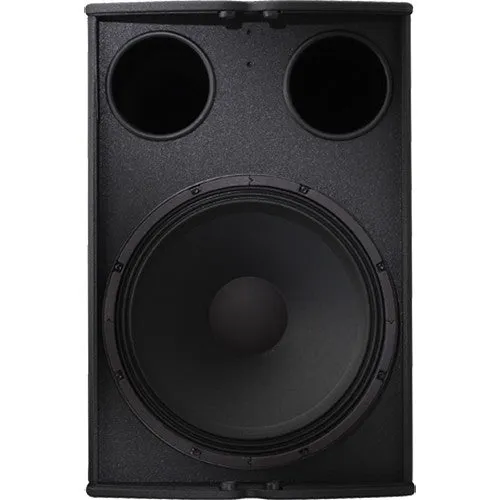

ELECTRO-VOICE F.01U.302.275
The TX1181 is the perfect companion sub to the TX1122 and TX1152 for compact and portable performance.
Features
- Designed for Club Sound, House of Worship, Pro Music, and other applications.
- EVS-18S 18” (457 mm) LF transducer
- 100 dB sensitivity, 132 dB maximum SPL
- Integrated low pass filter with 6 dB / octave slope
- 500 W continuous, 2000 W peak power handling
- Pole mount to elevate a two-way loudspeaker
- Mounting points to attach optional TX-W1 wheel kit
| Color | Black |
| Input Connections | Parallel Neutrik® NL4 |
| Speaker Type | Subs |
| Frequency Response (-3 dB) | 50 - 160 Hz |
| Frequency Response (-10 dB) | 45 - 700 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 30 Hz |
| Sensitivity 1 W/1 m | 100 dB |
| Max. SPL/1m (calc) | 132 dB |
| System Power Handling (Continuous/Program/Peak) | 500 Watts |
| LF Transducer | EVS18S |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 7.5 Ω |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Flying | No |
| Height | 769 mm (30.28") |
| Width | 508 mm (20") |
| Depth | 591 mm (23.27") |
| Weight Net | 33.8 kg (74.52 lbs) |
