Product Details
＋
CPX 690(6 x 9) mm (in.) | Coaxials | 360 W | 4 Ohm

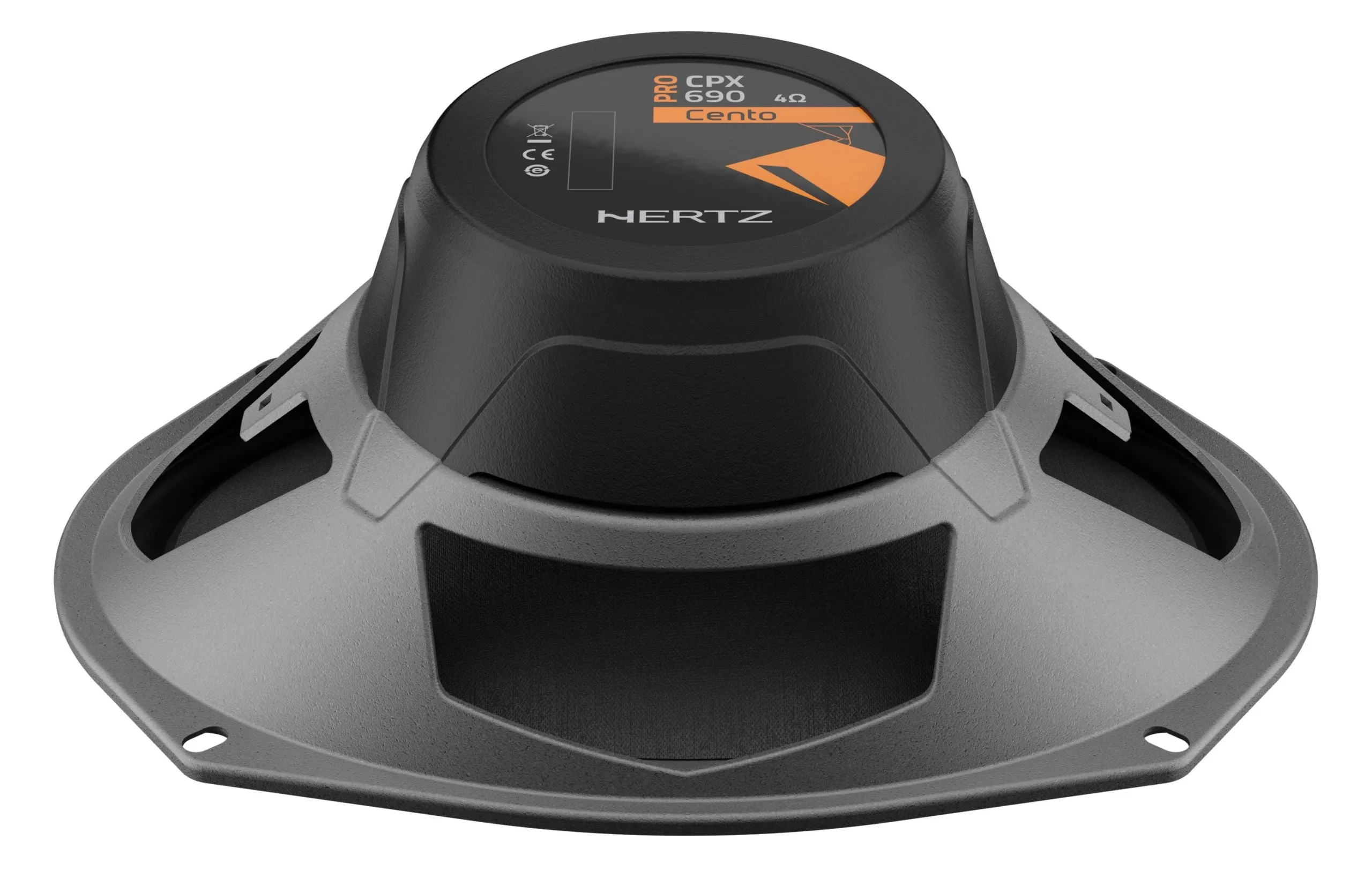

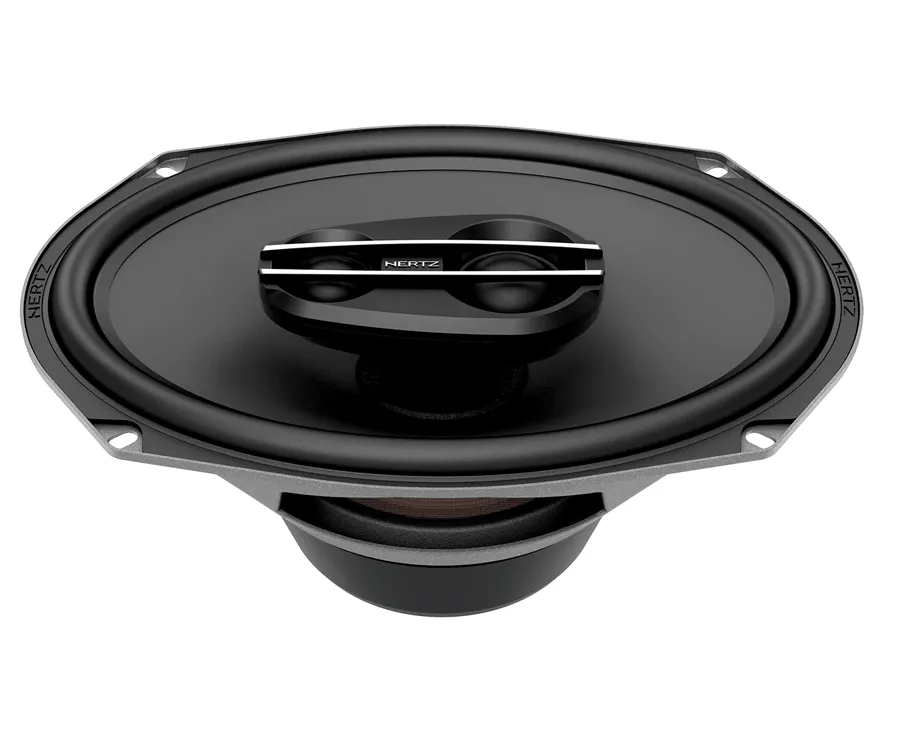

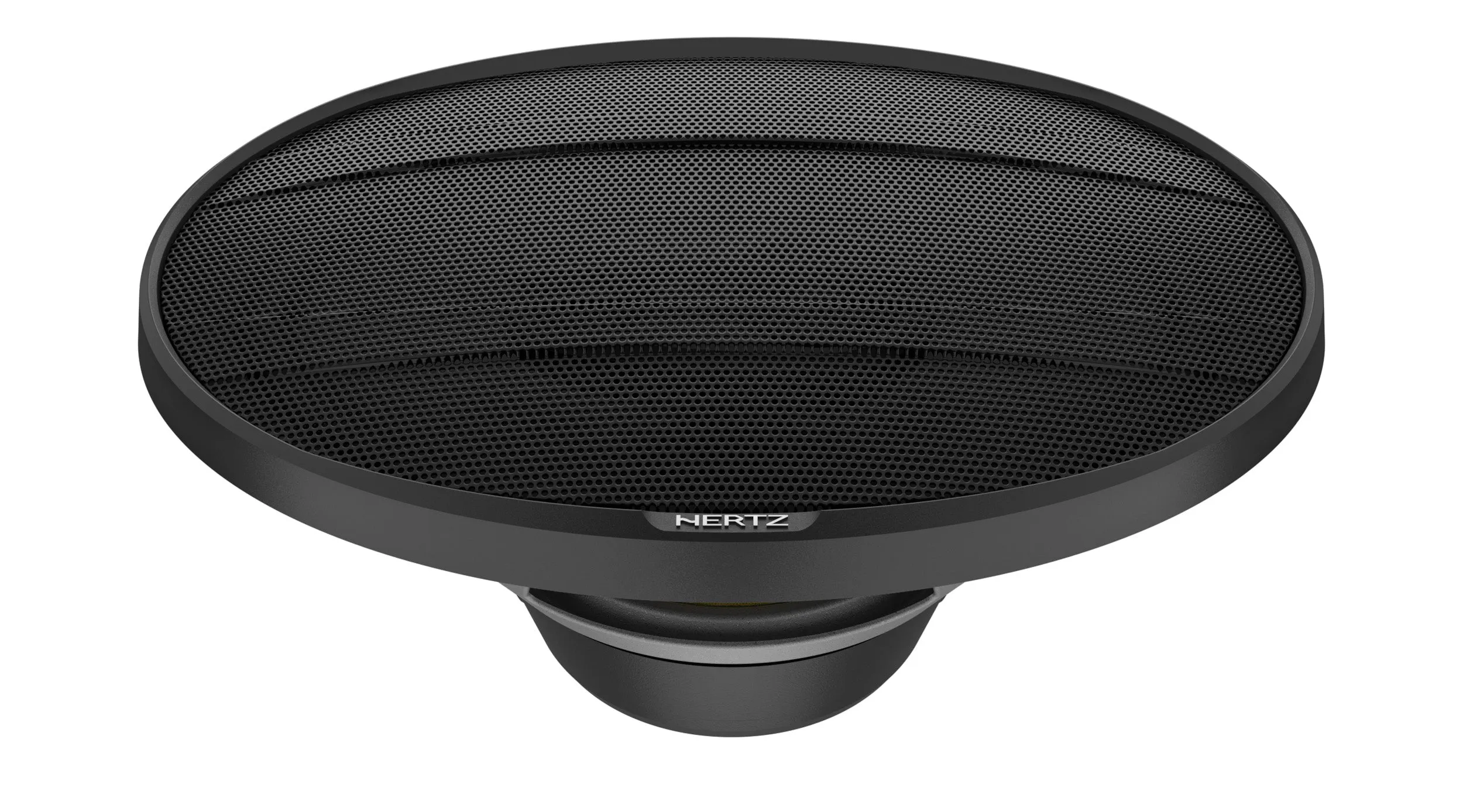

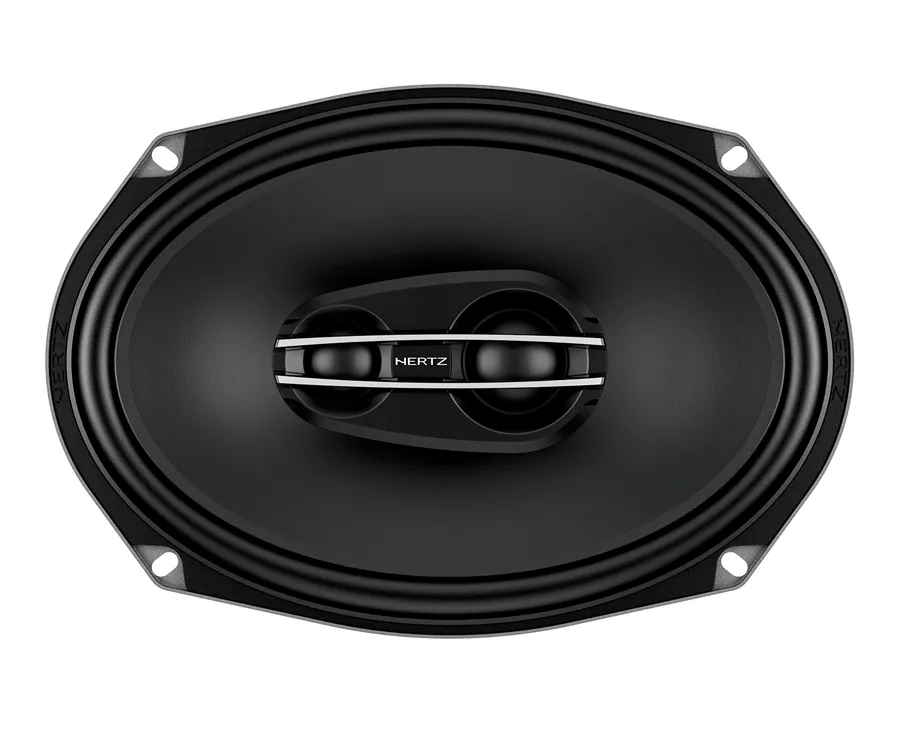

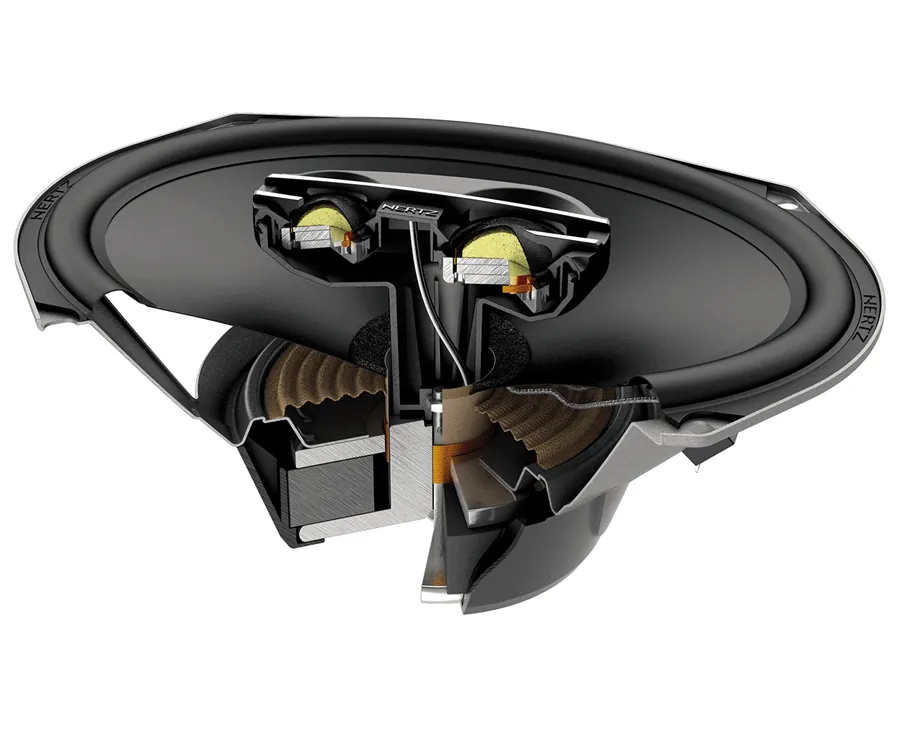

The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount. Tweeter and Supertweeter both feature Neodymium magnet and Tetolon dome, 32 mm and 24 mm respectively. The stylish faceplate is designed to maximize off-axis emissions and thus optimizing horizontal installation. As for the CPX 165, the CPX 690's Tweeter and Supertweeter boasts Radial Venting System technology for outstanding cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The supplied grille is made of a high resistance ABS plastic support and metallic mesh to ensure a high level of protection with a Hi-tech design
| Component | Coaxials |
| Size mm (in.) | (6 x 9) |
| Power Handling - Continuous W | 120 |
| Power Handling - Peak W | 360 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 32 (1.26) |
| Woofer Voice Coil Ø mm (in.) | 30 (1.2) |
| Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |
| Frequency Response Hz | 35 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 27,8 x 3 (1.09 x 0.12) |
| Weight of one speaker kg (lb.) | 1,63 (3.59) |
| Woofer Magnet | Ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
| Xmech mm (in.) | 7,5 (0.3) |
| D mm | 172 |
| Re Ohm | 3,4 |
| Fs Hz | 68 |
| Le mH | 0,53 |
| Vas I | 15,8 |
| Mms g | 26,5 |
| Cms mm/N | 0,21 |
| BL T*m | 6,0 |
| Qts | 0,77 |
| Qes | 1,10 |
| Qms | 2,7 |
| Spl dB | 94 |
Physical Specs
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 103 mm | 4.06 in. |
| D | 85 mm | 3.35 in. |
| E | 269 mm | 10.55 in. |
| F | 28,5 mm | 1.12 in. |
