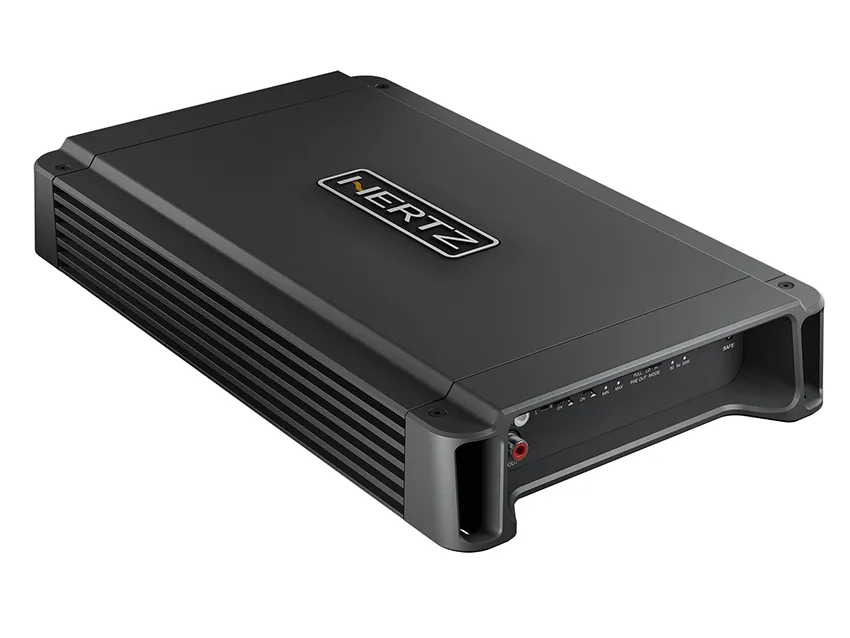

Hertz HCP 2X Stereo Amplifier

HCP 2X is a brand new stereo car audio amplifier, 800W amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
With HCP 2X high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 12 dB) to enhance low frequencies.

Specs

Channel mode 2 - 1
Output Power (RMS)
@ 14.4 VDC 2 Ch: 120 W x 2 (4 )
2 Ch: 200 W x 2 (2 )
1 Ch: 400 W x 1 (4 )
Filters
Bypass -
Hi-Pass 50 3200 Hz @ 12 dB/Oct.
Lo-Pass 50 3200 Hz @ 12 dB/Oct.
Band-Pass -
Subsonic -
Distortion - THD
(100Hz @ 4 ) 0,03 %
S/N Ratio
(A weighted @ 1V) 105 dB
Damping factor
(100Hz @ 4 ) 300
Size W x D x H
mm (in.) 315 x 190 x 50 (12.40 x 7.48 x 1.97)
