Intel Core i7-11800H (8C/16T, 2.3/4.6GHz, 24MB), 1x 16GB SO-DIMM DDR4-3200 Non-ECC, 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal2, 16.0" WQXGA (2560x1600) IPS 400nits Anti-glare 100% sRGB Low Blue Light DC Dimming, NVIDIA T1200 4GB, Intel AX210 11ax 2x2 BT5.2, IR & 1080p with Privacy Shutter, Windows 10 Pro 64

---

Spectacular on all fronts

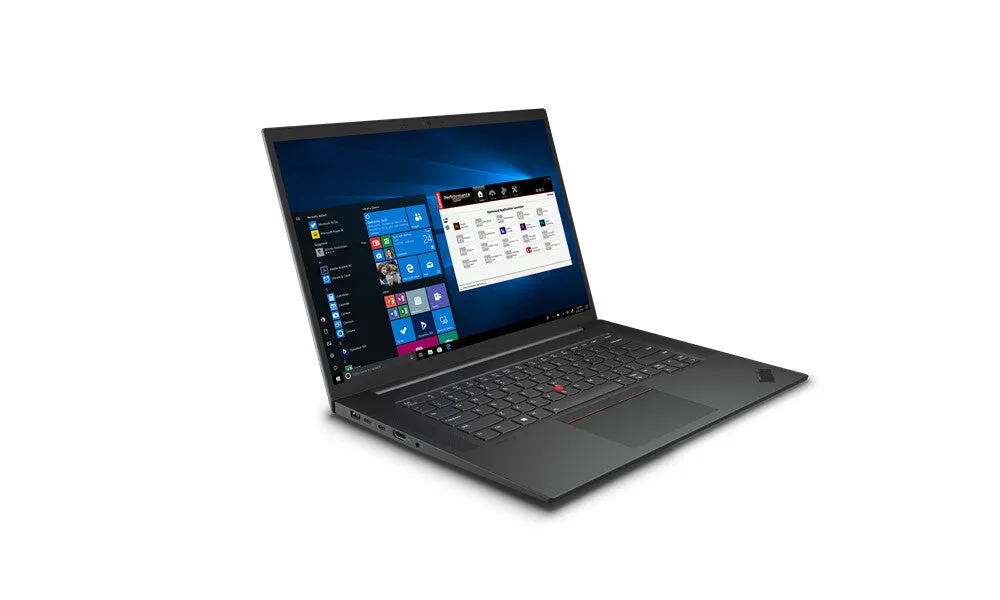

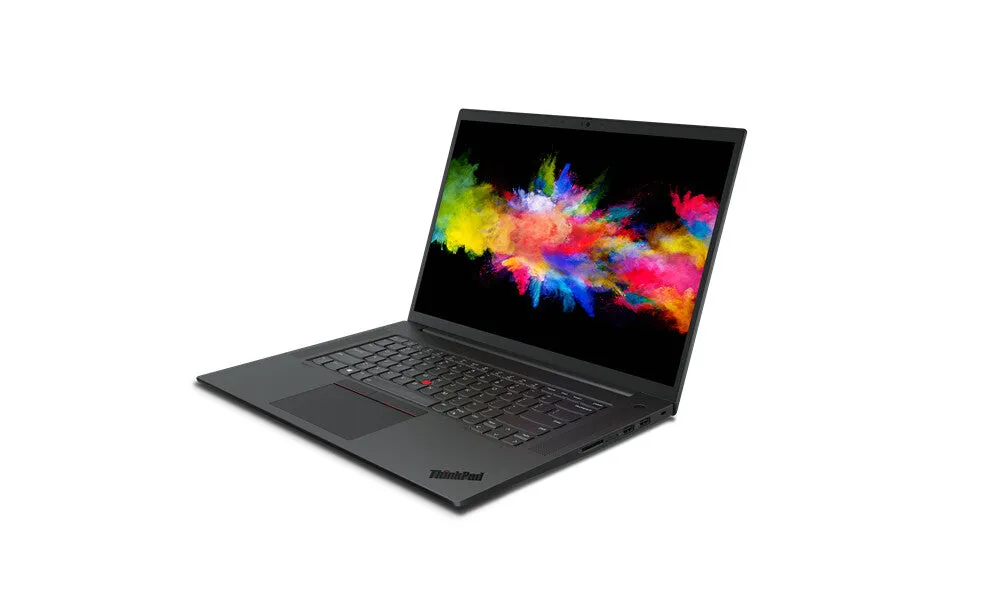

Powerful, mobile, and visually stunning, the 4th generation of our legendary ThinkPad® P1 is a content creator’s dream. This 16" mobile workstation boasts an Intel® powered system with the latest Core™ or Xeon® processors, redesigned thermals for increased graphics support, up to NVIDIA® RTX™ GPUs, and PCIe Gen 4 for faster, advanced storage technologies. Combined with the option of 5G and built-in WiFi 6E, this powerhouse keeps you up and running wherever you are.

---

Design
Intel® vPro™ Platform Eligibility	No
Housing material	Carbon Fibre Reinforced Polymer (CFRP), Polycarbonate (PC), Polyphenylene sulfide (PPS)
Form factor	Clamshell
Colour name	Black
Product colour	Black
Product type	Mobile workstation

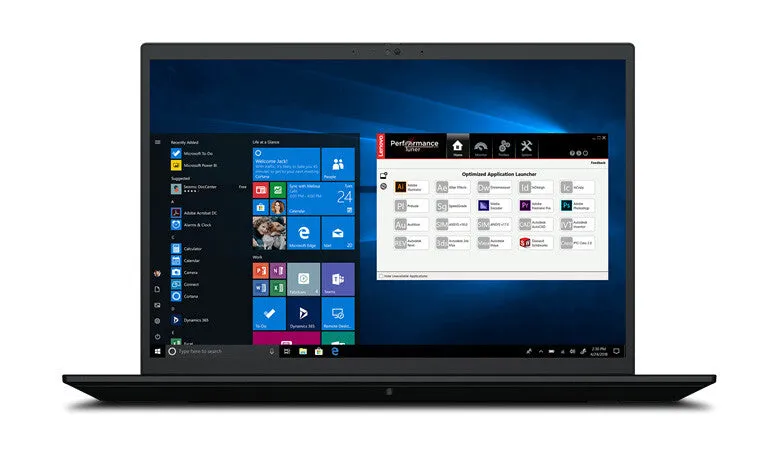

Display
Colour gamut	100%
RGB colour space	sRGB
Display brightness	400 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")

Processor
Motherboard chipset	Intel WM590
Processor cache type	Smart Cache
Processor cache	24 MB
Processor cores	8
Processor boost frequency	4.6 GHz
Processor frequency	4.6 GHz
Processor model	i7-11800H
Processor generation	11th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
ECC	No
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory form factor	SO-DIMM
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Internal memory	16 GB

Storage
Compatible memory cards	SD
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Storage media	SSD
Total storage capacity	512 GB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	4 GB
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	NVIDIA T1200
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Number of built-in speakers	2
Audio system	Dolby Atmos
Audio chip	Realtek ALC3306

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
Near Field Communication (NFC)	No
Bluetooth version	5.2
Ethernet LAN data rates	1000,100 Mbit/s
Ethernet LAN	Yes
WLAN controller model	Intel Wi-Fi 6E AX210
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Bluetooth	Yes

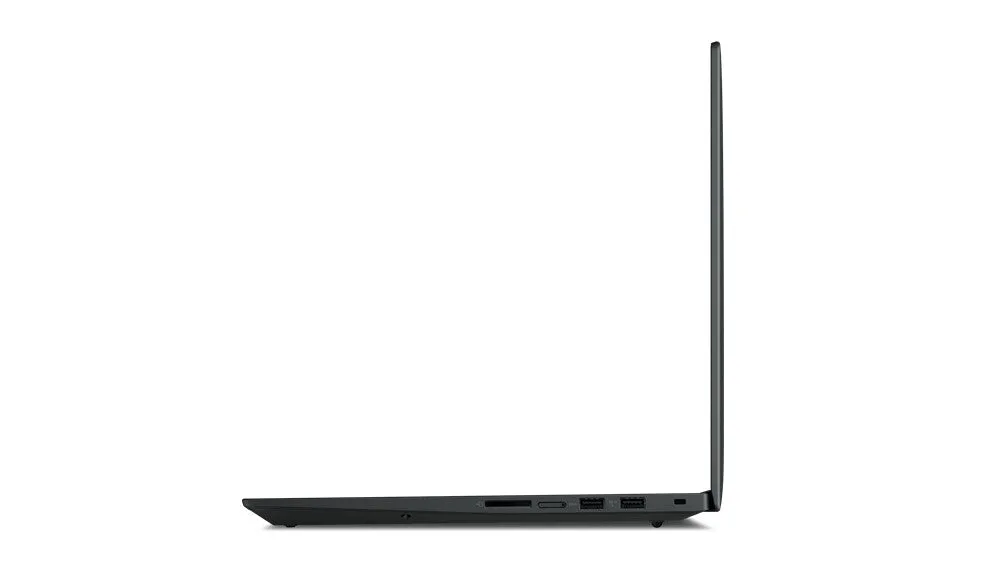

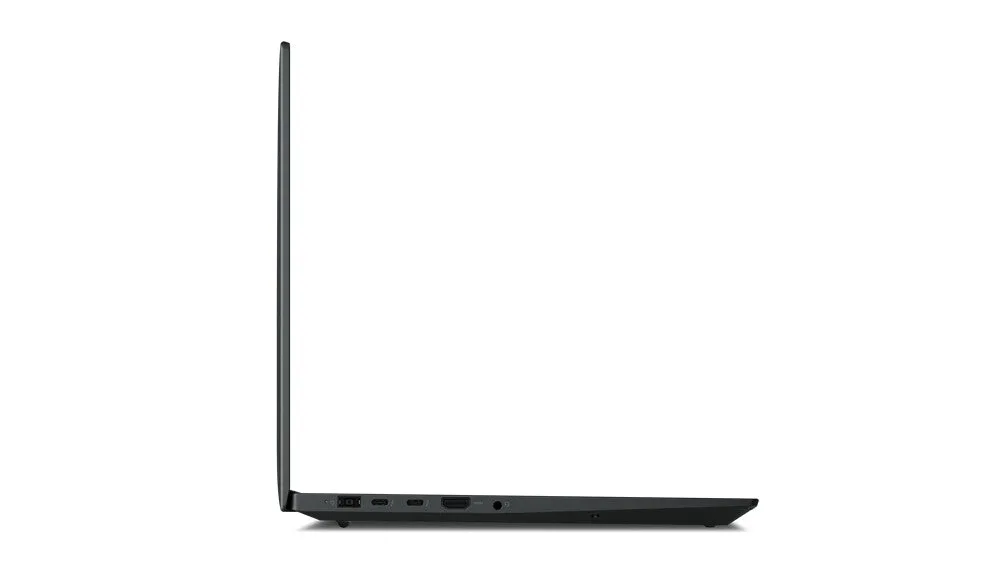

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Headphone outputs	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI version	2.1
HDMI ports quantity	1
Thunderbolt technology	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	UK English
Pointing device	ThinkPad UltraNav

Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro

Battery
Fast charging	Yes
Battery life (max)	10.9 h
Battery capacity (Watt-hours)	90 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter power	170 W

Security
Password protection type	Power on, SSD, Supervisor
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Windows Hello	Yes
Fingerprint reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Maximum shipping altitude	3048 m
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	EPEAT GoldENERGY STAR 8.0RoHS compliantMIL-STD-810H
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold

Weight & dimensions
Height	17.7 mm
Depth	253.8 mm
Width	359.5 mm
Weight	1.81 kg

General
Product family	ThinkPad
Product series	P

Logistics data
Harmonized System (HS) code	84713000

Technical details
Box contents	USB-C to Ethernet Adapter
