Details
Aesthetics

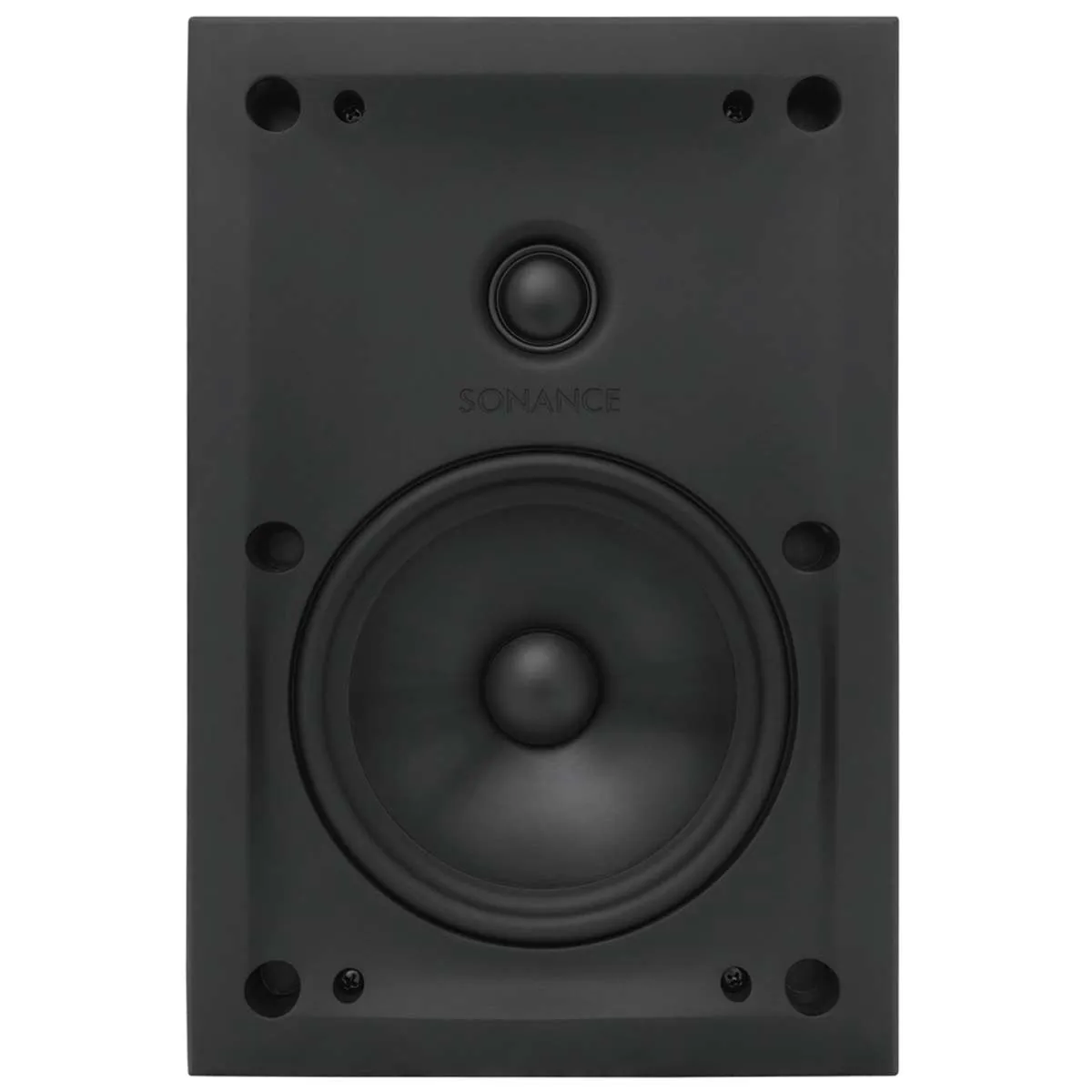

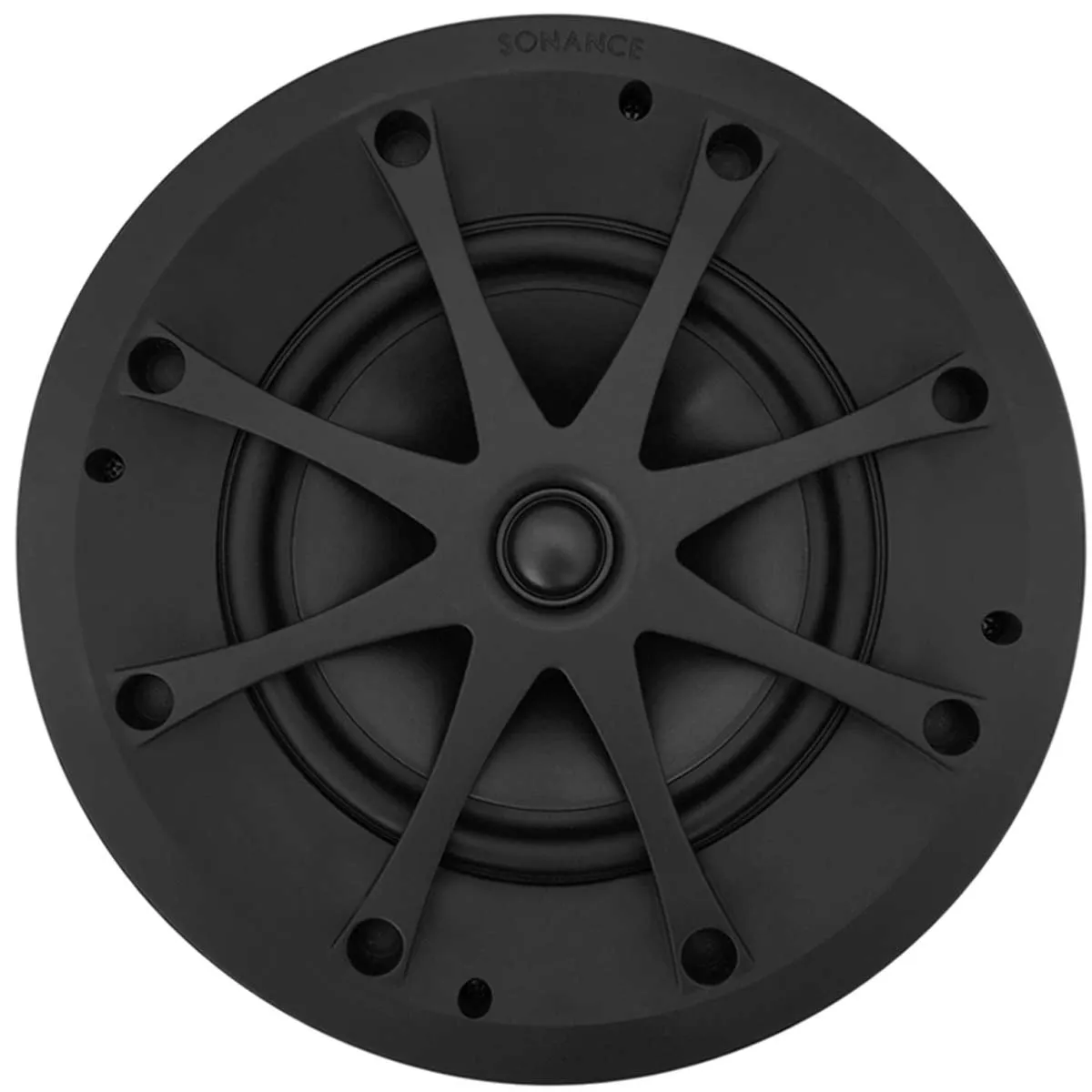

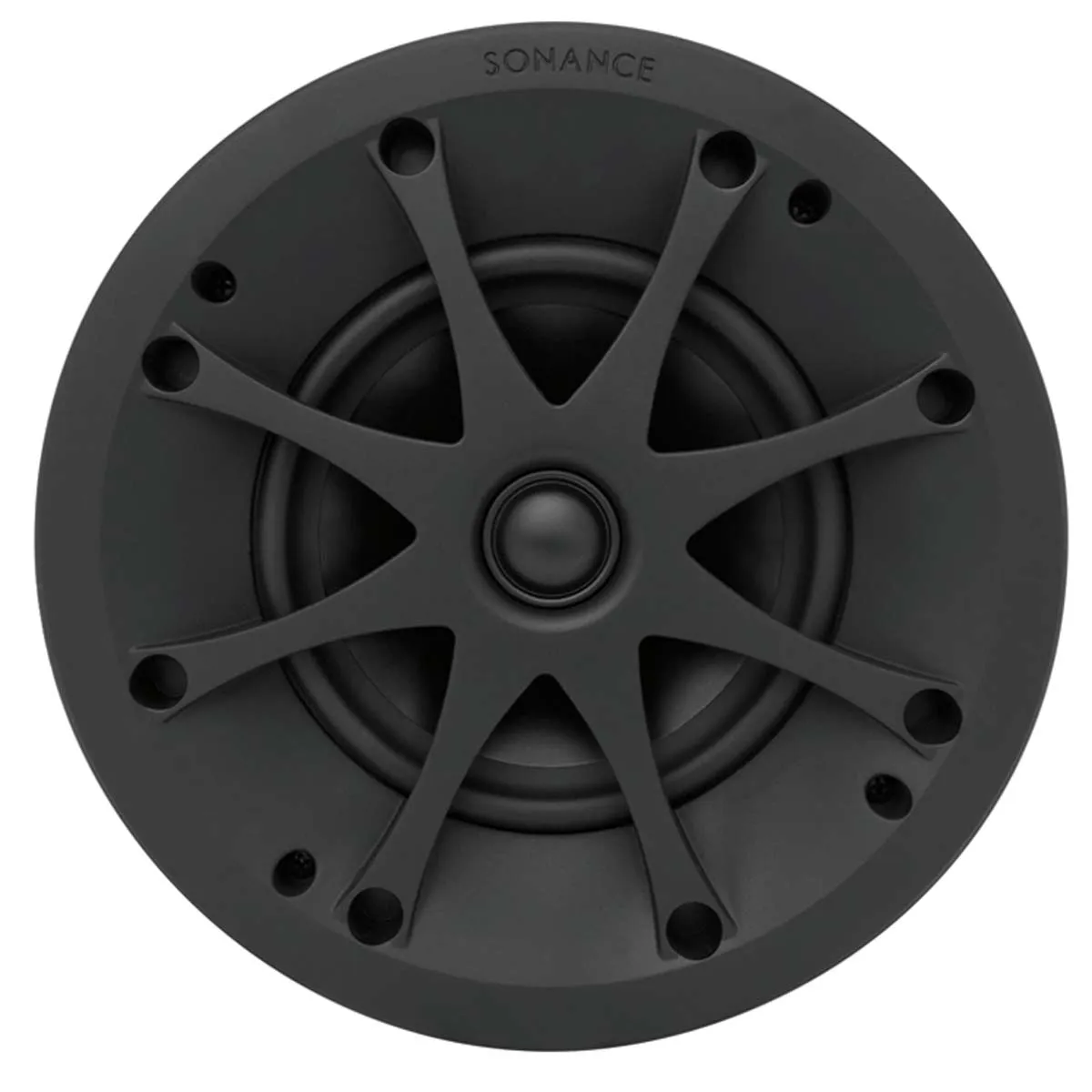

Sonance Extreme speakers feature the same Visual Performance Series aesthetic and paintable low-profile grille to blend into the surrounding wall or ceiling area and provide consistency with the rest of the home. Available in round, square or rectangle to provide the right aesthetic for any high-moisture installation including yachts, saunas, steam rooms, hot tubs and showers.
Environmental
Sonance Visual Performance Extreme speakers are built to withstand extreme temperatures (from -34ºC to 79ºC) and conform to Military Standard 810G for humidity, salt spray, temperature and UV. Extreme speakers are IP-66 rated for protection against heavy seas and powerful jets of water. This makes them the ideal solution for bathrooms, patios and marine environments.
Specifications
VPXT8R |
VPXT6R |
VPXT6R SST |
VPXT6 |
|
|
Tweeter |
1" (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
1" (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber |
1" (25mm) polyurethane dome, dual voice coil, Ferrofluid cooled, in acoustic back chamber |
1" (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber |
|
Woofer |
8" (205mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround |
6 1/2" (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround |
6 1/2" (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround |
6 1/2" (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround |
|
Frequency Response |
40Hz - 20kHz ±3dB |
45Hz - 20kHz ±3dB |
45Hz - 20kHz ±3dB |
45Hz - 20kHz ±3dB |
|
Power Handling
|
5 watts minimum; 130 watts maximum |
5 watts minimum; 130 watts maximum |
5 watts minimum; 130 watts maximum |
8 ohms nominal; 6 ohms minimum |
|
Sensitivity
|
90dB SPL (2.83V/1 meter) |
89 dB SPL (2.83V/1 Meter) |
89dB SPL (2.83V/1 meter) |
5 watts minimum; 130 watts maximum |
|
Shipping Weight |
14 lbs (6.35kg) pair |
12 lbs (5.4 kg) pair |
4.5 lbs (2.1kg) pair |
12 lbs (5.4 kg) pair
|
| Speaker Depth | 95mm | 89mm |
89mm |
64mm |
| Cut out Dimensions |
257mm |
210mm |
210mm |
176mm x 273mm |
